Garage Door Extension Spring Replacement Cost in Milwaukee in 2026

What Are Extension Springs and How Are They Different from Torsion Springs?

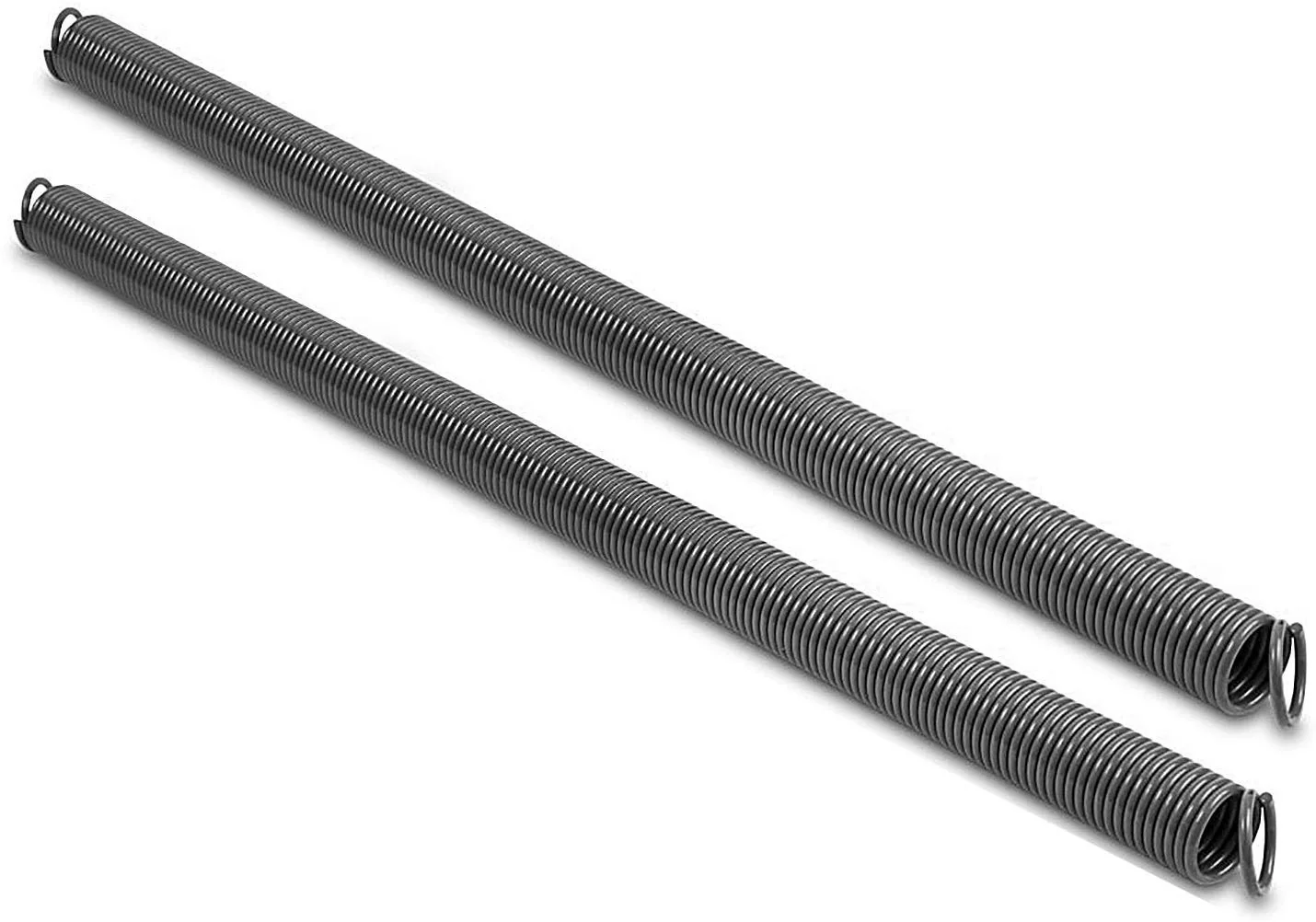

Extension springs are the long, coiled springs that run horizontally above the horizontal tracks on either side of your garage door. When the door closes, they stretch under tension. When the door opens, that stored tension does the lifting work.

Torsion springs sit on a horizontal bar directly above the closed door and twist to store energy rather than stretching. Extension springs are more common on older, lighter single-car doors; torsion springs dominate newer two-car installations. Both can snap without warning, but extension springs tend to be louder when they break because the entire coil goes slack and can whip around the track area.

Extension springs also come in a few sub-types based on how they attach to the door hardware: open-looped (easiest to replace, but the most prone to wearing out at the loop end), double-looped (stronger connection point), and clipped-end (the most durable, used on heavier doors). The spring type your door uses affects parts cost slightly but doesn't change the labor significantly.

What Does Extension Spring Replacement Cost in Milwaukee?

Here's a realistic breakdown for 2026:

Parts cost (per spring): $25–$150 depending on spring size, weight rating, and type. Standard open-loop springs for a single-car door sit at the low end; heavy-duty clipped-end springs for a larger door run higher.

Labor cost: $150–$350 for most residential jobs. Extension spring work involves releasing and re-tensioning a cable and pulley system in addition to swapping the spring itself. The process is faster than torsion spring replacement but still requires working with a loaded system.

Total for one spring: $200–$550Total for both springs (recommended): $350–$900

Our garage door repair technicians quote the full job before starting, so there are no surprises on the invoice. Garage Door Professional gives you a straight parts-and-labor breakdown before any work begins — no upsells, no pressure to replace hardware you don't need.

‍

‍

Why Should You Replace Both Extension Springs at Once?

If one spring breaks, the second one is usually close behind. Extension springs on the same door were installed at the same time and have been under the same load and cycle count since day one. By the time the first spring fails, the second has already lost a significant portion of its rated tension life.

Replacing only the broken spring and leaving the fatigued one in place means you'll likely be scheduling a second service call within a few months. You pay two labor charges, and in the meantime your door runs unevenly because one side has a fresh spring and the other has a worn one. Uneven tension puts stress on cables, pulleys, and the bottom brackets.

Our technicians at Wisconsin Garage Door Pro replace both springs on the same visit as standard practice when one has snapped. The incremental parts cost is $25–$150 for the second spring. The labor is already there. It's the most cost-effective call you'll make.

Can You Buy Springs at Home Depot and Do It Yourself?

Technically, yes. Extension springs are sold at home improvement stores. The challenge is matching the replacement spring precisely to your door's weight, height, and track configuration. The wrong spring tension — even slightly off — causes the door to travel unevenly, puts strain on the opener, and can cause the door to drop unexpectedly if a cable shifts.

Extension spring work also involves working around loaded cables and pulleys. A spring under tension stores significant energy, and without the right tools and experience, releasing that energy incorrectly causes serious injury. This is one of the reasons professional spring repair is recommended over DIY for most homeowners. See our frequently asked questions for more on what garage door repairs are safe to tackle yourself.

Beyond the safety concern, sourcing the right spring at a hardware store often takes multiple trips. Stock sizes don't always match. Special orders can take several days.

Why Does Same-Day Service Beat Waiting on a Parts Order?

A broken spring means your car is trapped or your garage is stuck open. Waiting two to five days for a parts shipment from an online retailer isn't a real option for most homeowners.

When you call Garage Door Professional, a real person answers in under 30 seconds. No automated menus, no hold music, no call center in another state. Our trucks carry a full inventory of extension springs in the most common sizes for Milwaukee-area doors — Clopay, Amarr, Wayne Dalton, Overhead Door, and more. Same-day service is available for most spring repairs across our service area, including Milwaukee, Brookfield, Mequon, New Berlin, Waukesha, and surrounding communities.

Waiting on a parts order also doesn't solve the second problem: installation. Having the spring in hand still means someone has to balance the door, thread the safety cable through the new spring, and set proper tension. That's a job for a technician with the right tools, not a YouTube tutorial on a Saturday afternoon.

How Long Do Extension Springs Last?

Most residential extension springs are rated for 10,000 cycles. One cycle is one open-and-close. A typical household that uses the garage door four times a day hits 10,000 cycles in roughly seven years. Higher-cycle springs (20,000 and 30,000 cycle ratings) are available and cost more upfront but last significantly longer.

Wisconsin winters add wear beyond raw cycle count. Metal contracts in subzero temperatures, which increases the load on springs during cold-weather operation. Salt and road spray that gets tracked into the garage accelerates corrosion on open-loop springs in particular. If your door is in an unheated garage and you're in an older home in the Milwaukee area, you may see springs reach the end of their life faster than the rated cycle count suggests.

Asking your technician about high-cycle springs at replacement time is a smart move. The upgrade cost is modest, and the payoff is years of additional service life.

Ready to Schedule a Spring Repair?

Garage Door Professional was named to the Garage Door Handbook Top 100 Garage Door Companies of 2026 and serves the Milwaukee metro and seven surrounding Wisconsin counties with no after-hours surcharges and no emergency fees. If your spring is broken or your door is struggling to lift, contact us or call (414) 375-5533 for a free in-person quote. Same-day availability means your garage door doesn't have to wait until next week.

‍
