Master the Essentials of Garage Door Springs Choosing Between Torsion and Extension Systems

Your garage door springs handle up to 90% of the door’s weight—some bearing over 400 pounds daily. Choose the wrong system, and you risk costly repairs or dangerous failures. As a technician who’s replaced hundreds of springs, I’ve seen firsthand how the right choice prevents headaches. Let’s break down torsion and extension systems to help you decide.

How Garage Door Springs Work: Torsion vs Extension Systems

Both springs counterbalance your door’s weight but use radically different methods.

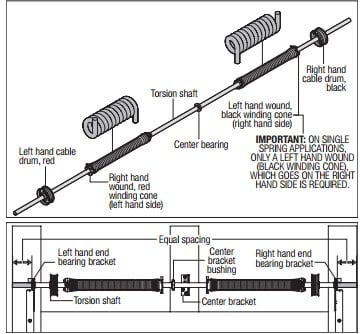

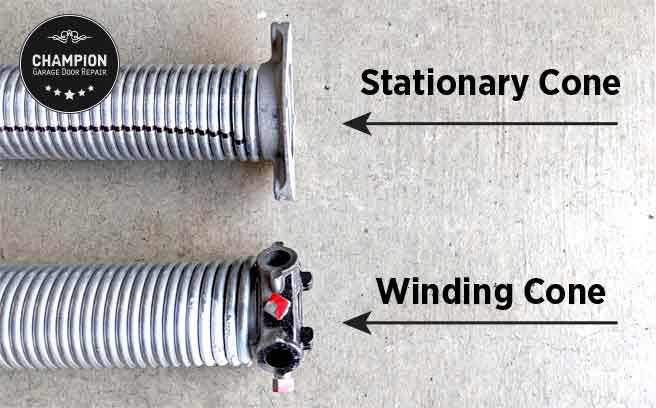

Torsion Spring Garage Door Mechanism Mounted horizontally on a metal shaft above the door, torsion springs twist (like tightening a clock spring) to store energy. When opening, they unwind to lift the door via cables wrapped around steel drums. Their contained design keeps tension controlled and predictable.

Extension Spring Garage Door Mechanism These stretch vertically along the door’s side tracks, expanding as the door closes. Like a rubber band, they snap back to assist lifting. Though simpler, their exposed position requires safety cables to contain potential breaks.

Garage Door Spring Safety: Why Torsion Systems Dominate

Torsion springs aren’t just stronger—they’re smarter. When one snapped during a Wisconsin winter job, the steel shaft kept it from flying, preventing injury. Extension springs lack this containment.

• Lifespan: Torsion springs last up to 30,000 cycles (about 12 years with 7 daily uses) vs. 15,000 cycles for extensions.
• Failure Risks: 83% of garage door injuries involve extension springs, often from DIY repairs on worn-out systems.
• Weather Resistance: Stainless steel torsion springs outperform galvanized models in humid regions, while extension springs rust faster near salt-heavy sidewalks.



Cost and Installation: What You’ll Pay (And Why Professionals Matter)

Torsion Spring Garage Door Costs Expect to invest 40-60% more upfront versus extensions due to complex installation. In 2023, a Chicago homeowner saved $1,200 long-term by choosing torsion—avoiding three extension spring replacements.

Extension Spring Garage Door Costs Cheaper initially ($120-$200 per pair) but demand frequent upkeep. Missing one safety cable check in a Florida home led to $2,500 in wall damage from a snapped spring.

‍

Maintenance Musts for Both Spring Types

1. Lubricate Smartly: Every 4 months, apply silicone spray—WD-40 attracts dust and dries coils.
2. Monthly Checks: Look for rust, gaps between coils, or frayed cables (replace immediately if found).
3. Balance Test: Disconnect the opener. If the door falls when lifted halfway, your springs are failing.


“Always replace both springs,” advises John Tanner, IDA-certified technician. “One new spring strains the old one, causing early breaks.”

Climate’s Hidden Impact on Spring Choice

• Cold Climates: Torsion springs handle contraction better—Minnesota homes using extensions report 33% more winter failures.
• Coastal Areas: Salt air corrodes extension springs 50% faster. Opt for nylon-coated options.
• High-Use Scenarios: Tech offices with 20+ daily cycles need high-grade torsion springs (50,000+ cycles).


‍

Torsion vs Extension Garage Door Springs: Side-by-Side

• Best For: Torsion springs are best for heavy doors (200+ lbs) and harsh climates, while extension springs are better for light doors and tight budgets.

• Safety: Torsion springs are safer, as a break is contained on the shaft. Extension springs are a higher injury risk because they can snap and whip sideways when they break, which is why they require safety cables.

• Repair Cost: Repairing a torsion spring is more expensive ($200-$400) and requires a professional. Extension springs are cheaper to fix ($120-$250) and a DIY repair is possible.

• Weakness: The main weakness of torsion springs is that they need 12 inches of headroom. The main weakness of extension springs is their dangerous breakage if a safety cable isn’t present.

When Your Springs Fail: Emergency Steps

1. Don’t Operate the Door: Forced movement warps tracks.
2. Secure the Area: Keep kids/pets away from dangling cables.
3. Call a Pro Immediately: Spring tension can crush fingers—62% of ER visits involve DIY attempts.


The Smart Buyer Checklist

1. Match Weight Ratings: Heavy wooden doors need 250-lb+ torsion springs.
2. Verify Certifications: Look for IDA or ANSI compliance labels.
3. Plan for Climate: Humid? Choose stainless steel. Frigid winters? Upgrade cycle ratings.


By weighing these factors, you’ll avoid my neighbor’s mistake—installing extension springs on a 3-car door only to face $900 in repairs 18 months later. Invest wisely, and your springs will lift smoothly for decades.
