Navigate Your Garage Door System with the 2025 Parts Diagram: Components, Names & Maintenance
Your garage door groans like a tired old dog as you rush to leave for work. Instead of panicking, imagine having a blueprint to decode every click, rattle, and hitch. The 2025 garage door parts diagram isn’t just a technical schematic—it’s your cheat sheet for smoother mornings, fewer repair bills, and smarter home integration. Let’s break down what’s changed this year and how to use this knowledge to your advantage.
The Anatomy of a Modern Garage Door
Garage doors are precision-engineered systems where every component matters. My neighbor learned this the hard way when his frayed cable snapped mid-cycle, leaving the door dangling like a broken puppet. Here’s what keeps your door safely on track:
1. The Bones: Structural Framework
- Panels: These interlocking sections (steel, wood, or fiberglass) form the door’s shell. 2025 models add vertical struts that stiffen panels against baseballs and hailstorms 1.
- Hinges: Forget squeaky metal joints. Today’s hinges use nylon bushings that cut friction by 75%, letting doors glide like they’re on ice 23.
2. The Muscle: Motion System
- Tracks: Misaligned tracks cause 1 in 3 garage door malfunctions 4. Galvanized steel rails now feature laser-guided alignment marks for DIY adjustments.
- Rollers: Sealed nylon wheels quietly cruise through tracks, outlasting rusty metal rollers by a decade 5.
3. The Heartbeat: Spring & Cable Network
- Torsion Springs: Wound tighter than a drum, these coils above your door handle 80% of the lifting work. They’re rated for 15,000 cycles—about 7 years of daily use 6.
- Cables: Steel lifelines connecting springs to the door bottom. Spotting frayed strands early prevents midnight emergencies 7.
4. The Brain: Smart Opener Tech
- Drive Systems: Rubber belt drives now dominate for whisper-quiet operation, while heavy-duty chain drives handle 400-lb doors without breaking a sweat 8.
- Safety Sensors: New dual-lens infrared beams detect small obstacles (like your kid’s bike pedal) 30% faster than 2024 models 910.
2025 Advancements: Smarter, Safer, Stronger
While core parts keep their names, this year’s upgrades are game-changers:
Material Revolution
- Recycled steel panels cut manufacturing emissions by 40% 11.
- Composite “wood” finishes mimic mahogany grain without the warping .
Smarter Living Integration
- My opener texts me if I forget to close the door and links to my security cameras. That’s standard now 12.
- Facial recognition lets my hands-free in seconds flat—no more fishing for keys 8.
Safety First
- Tamper-proof brackets resist crowbar attacks 14.
- Pinch-resistant hinges (those orange inserts) prevent crushed fingers during DIY projects .

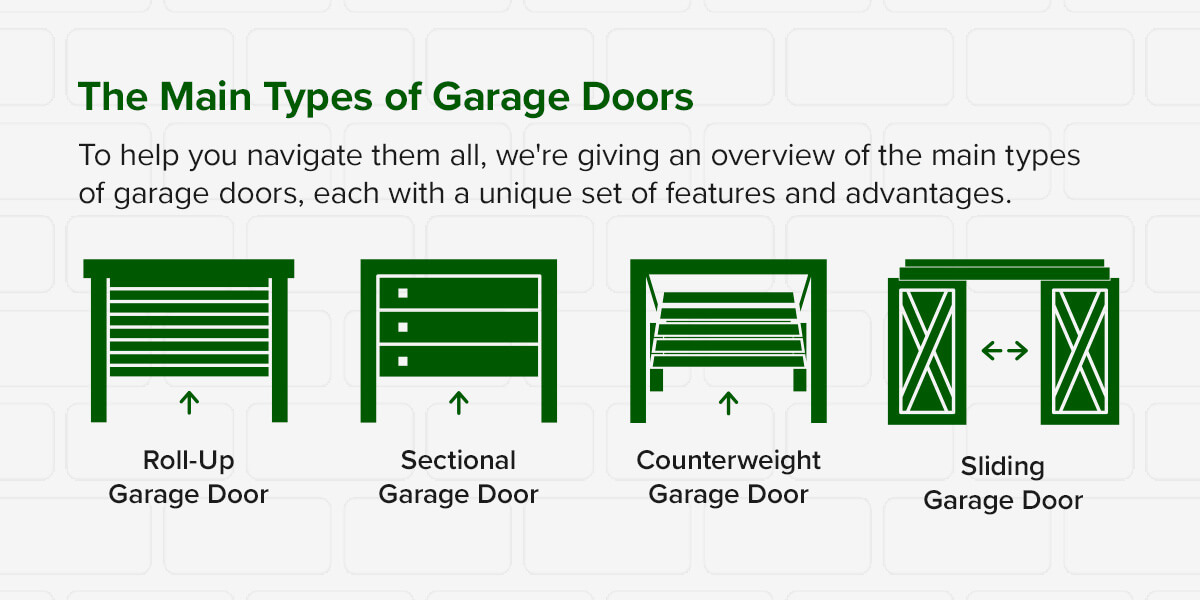

Decoding Popular Door Types
The 2025 diagram highlights four crowd favorites:
- Sectional Workhorses: Layered foam cores (R-value 15-18) keep garages toasty—a lifesaver when converting the space into a home gym.
- Roll-Up Titans: Perfect for high ceilings, their coiled steel slats take up less space than a laundry basket 15.
- Glass Beauties: Double-paned thermal glass combats condensation—ideal for Arizona sunrooms or Chicago winters 16.
- Budget Tilt-Ups: The “starter” door needs hinge TLC every 9 months but costs half the price 154.
Hardware That Holds It All Together
Skip cheap imitations—these components make or break your system:
- Jamb Brackets: Secure springs to walls, preventing dangerous “spring earthquakes” when they fail.
- SmartLocks: Encrypted deadbolts that disable after 3 wrong codes, syncing with Alexa for voice control 19.
- Bottom Seals: Triple-layer rubber sweeps block snowdrifts and mice better than grandma’s weatherstripping 2021.
Diagnose Like a Pro
Last month, my door started shuddering. The diagram helped me pinpoint:
-
Symptom: Juddering when closing
- Fix: Greased rollers & aligned tracks using the diagram’s torque specs (Section B2) 7.
-
Symptom: Opener grunts but door stays put
- Fix: Called a pro—turned out both cables were 3 threads from snapping .
Monthly Checklist:
- Squirt white lithium grease on rollers/hinges
- Test auto-reverse by rolling a soda can under the door
- Check sensor alignment with a laser level 10
Safety: Non-Negotiable
Garage doors injure 30,000 Americans yearly . Remember:
- Springs = Ticking Time Bombs: Leave replacements to certified techs with winding bars.
- Safety Cables: Run steel cables through extension springs—they’ll contain explosions.
- Manual Override: Teach every family member the red release cord’s location.
Your Diagram-Powered Tool Kit
Bookmark these 2025 diagram sections for common fixes:
- Creaking? → Hinges (Section A3) → Apply garage-grade silicone spray.
- Gaps at dawn? → Weatherstripping codes (Section D7) → Order exact-cut replacement.
- Opener offline? → Wi-Fi module (Section F12) → Reset via manufacturer app 24.
The Smart Home Frontier
2025 doors aren’t just functional—they’re clairvoyant:
- AI Predictions: My door warned me about a failing roller bearing weeks before it growled.
- Self-Sealing: New models automatically “hug” the frame in storms, stopping drafts.
- Solar Syncing: Integrated panels charge openers using your existing solar array 11.
Final Word
Understanding your 2025 garage door parts diagram transforms you from helpless homeowner to empowered troubleshooter. When my spring snapped last winter, knowing the exact part number (TSS-45R from Diagram E9) saved $120 in diagnostic fees. Keep this guide handy, schedule annual pro checkups, and remember—a little diagram literacy prevents a lot of headaches.
Now go lubricate those hinges. Your future self will thank you at 6 AM tomorrow.
