Torsion vs Extension Garage Door Springs: Cost Comparison for Milwaukee Homeowners (2026)

What Is the Difference Between Torsion and Extension Springs?

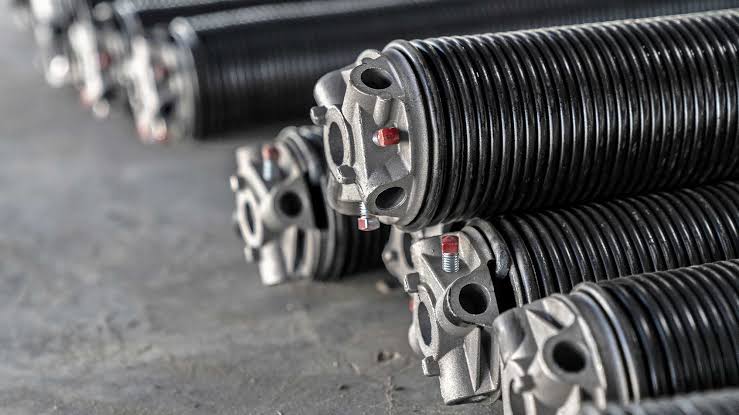

Torsion springs mount horizontally on a metal shaft directly above the garage door opening. When the door closes, the spring winds up and stores energy. When the door opens, that stored energy unwinds and lifts the door. Most modern single-car and double-car doors in southeastern Wisconsin use one or two torsion springs depending on door width and weight.

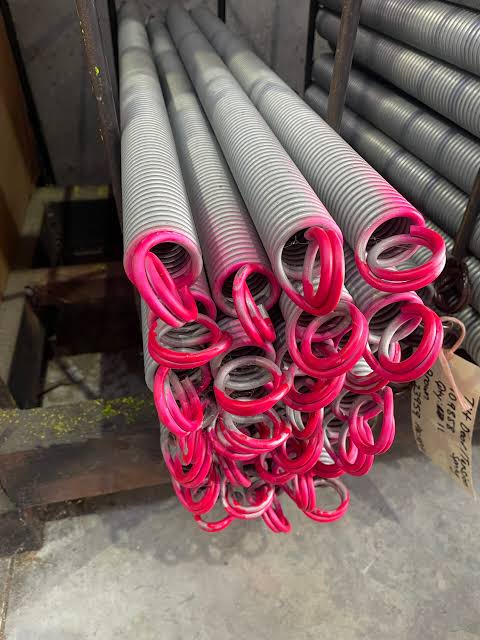

Extension springs run along the horizontal tracks on each side of the door. They stretch (extend) as the door closes and contract as it opens. Extension springs are more common on older homes and lighter doors, and they always come in pairs, one on each side. You will almost always see them on doors installed before the mid-2000s in neighborhoods like Bay View, Wauwatosa, and older Madison subdivisions.

The easiest way to tell them apart: if there is a long metal rod above your door with a spring coiled around it, you have torsion springs. If you see two springs running parallel to the ceiling tracks on each side, you have extension springs.

Should You Replace One Spring or Both at the Same Time?

For torsion springs on a two-spring system, we recommend replacing both springs at the same time even if only one has broken. Both springs were installed on the same day, have the same cycle count, and are under the same stress. If one has snapped, the other is likely within a few hundred cycles of failing. Replacing both in one visit saves you a second service call and a second labor charge, and typically adds only $200 to $350 to the cost of a single-spring job.

For extension springs, both sides must be replaced as a matched pair regardless, since mismatched springs will cause the door to open unevenly and strain the opener.

The exception: if your spring system is relatively new (under three years old) and one spring failed due to a defect or unusual impact rather than normal wear, replacing only the broken spring makes sense. A technician can assess the condition of the remaining spring on arrival.

Is It Safe to Replace Just One Torsion Spring If Cost Is a Concern?

Technically, a single torsion spring can be replaced on its own, and Wisconsin Garage Door Pro will do that repair if that is what you want. However, we always explain the tradeoff. A door running on one new spring and one spring near the end of its life creates uneven tension that stresses cables, drums, and the opener. It is not an immediate safety emergency, but it shortens the life of surrounding hardware. Review our garage door safety page if you want to understand how spring tension affects the full system.

‍

‍

Does Wisconsin's Climate Affect How Long Garage Door Springs Last?

Yes, and this is one area where Milwaukee homeowners pay more over time than homeowners in warmer states. Garage door springs are rated for a certain number of cycles (one cycle equals one open and one close). Standard springs are rated for 10,000 cycles, which translates to roughly 7 to 10 years of average use. High-cycle springs rated for 25,000 or 50,000 cycles are available at a higher upfront cost but significantly lower cost per cycle.

In Wisconsin, the freeze-thaw cycle adds a layer of stress that purely cycle-count ratings do not capture. Metal contracts in subzero temperatures, which increases the torque required to lift a cold, stiff door. Springs that have lost even a small amount of tension over time are far more likely to snap on a January morning than on a mild spring day. Road salt blown into garages near driveways also accelerates corrosion on extension spring hardware, which is why Milwaukee homeowners in older homes often find their extension spring cables and safety cables deteriorating faster than the spring itself.

Adam Gilbert and the team at Wisconsin Garage Door Pro handle spring failures year-round across all seven southeastern Wisconsin counties, including surge calls every January and February when the cold snap hits and springs that were borderline all fall finally snap.

Is a Torsion Spring System Worth Upgrading to from Extension Springs?

If your door currently uses extension springs and you are already paying for a repair, converting to a torsion spring system is worth discussing. The conversion typically adds $150 to $300 to the job cost but delivers a quieter, more balanced door, less hardware to maintain, and a longer spring life. Extension spring systems also require safety cables running through each spring to contain them if they snap, and those cables add a small but real inspection item every year.

For heavy two-car doors (two-layer insulated steel, wood composite, or carriage-style doors from brands like Clopay, Amarr, or Wayne Dalton), torsion spring systems are standard because they handle heavier loads more evenly. If your extension spring door is lightweight and working well aside from the broken spring, a like-for-like extension spring replacement is perfectly fine.
